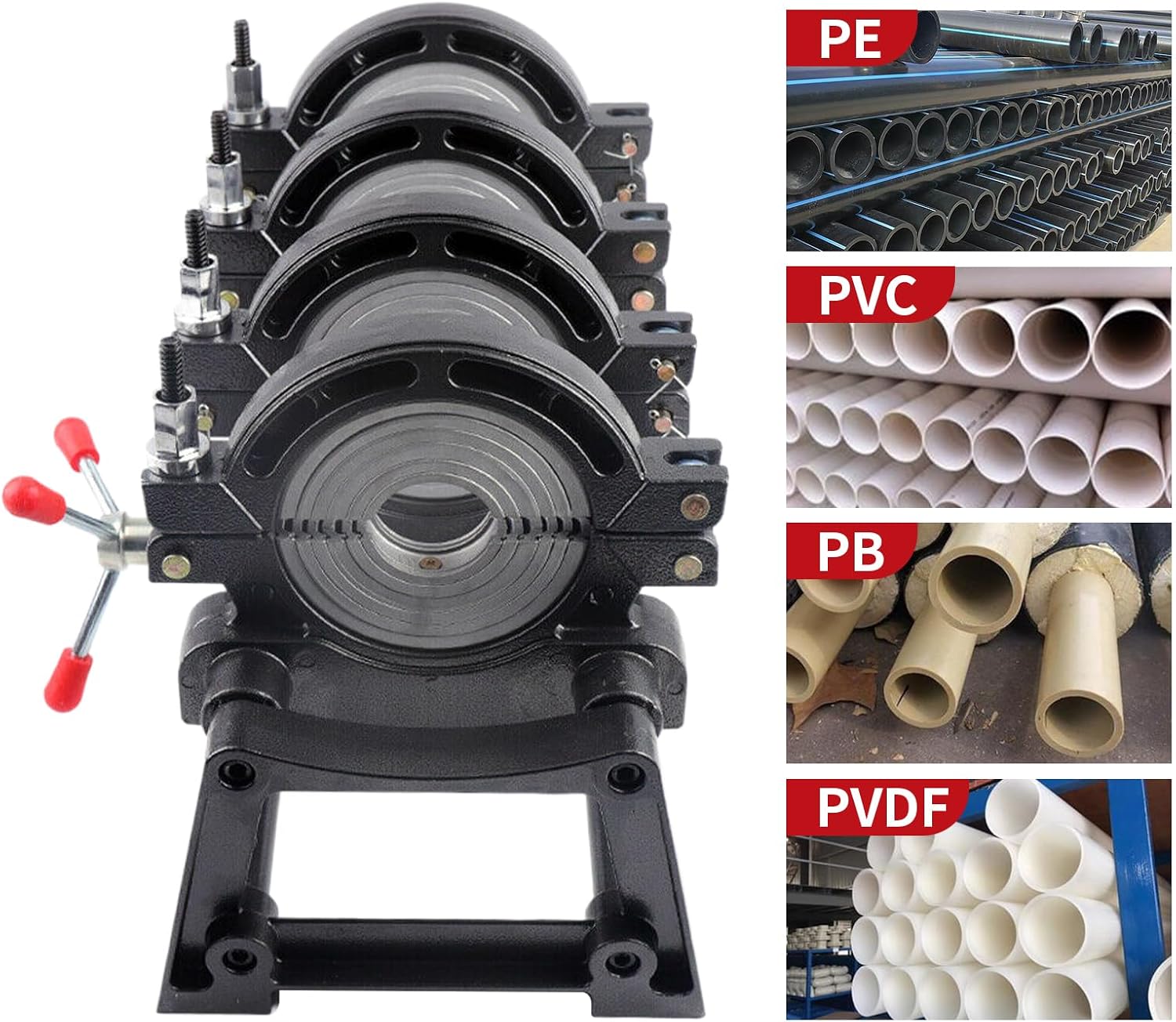

4 Clamps Pipe Fusion Welder, 2.48''-6.3'' Manual Pipe Fusion Welder Hot Melt Machine Fitting Pipe Welding Butt Fusion Welding Machine 2.5KW HDPE Butt Welding Machine for PE PP PB PVDF HDPE PVC

DescriptionManually Operated HDPE butt fusion welding machine is suitable for PE and PP pipes and fittings. High quality design and construction provides an excellent machine for welding both on the worksite and in the factory. The use of high quality Aluminum casting allows for lower weight without compromising strength and performance.Specifications:Model No. 63-160MM four rings manualMaterials Aluminum alloy casting, 45# steelWelding level(Φ, mm) Outer dia 63mm(2.48”)75mm(2.95”)90 mm (3.54”)110 mm (4.33”)125 mm (4.92”)140 mm (5.51”)160 mm (6.30”)Docking deviation ≤0.3mmPower of Heater 2.5KW/110VPower of Milling Cutter 1.1KW/110VWorking temperature 300°cTemperature deviation ±5°cEnvironment temperature -5……40°cTime required to reach soldering temperature <20minMaterials can be welded PE PP PB PVDF HDPE PVC

• 【Main Parameters】Model No. 63-160MM four rings manual; Power of Heater 2.5KW/110V; Power of Milling Cutter 1.1KW/110V; Working temperature 300°c; Temperature deviation ±5°c; Environment temperature -5……40°c; Time required to reach soldering temperature <20min.
• 【Precision Welding Tools】The double-ring structure is convenient for welding the body butt joint to achieve a docking deviation of less than 0.013in, Provides a more precise welding experience.
• 【Easier Welding】The rocker, split structure, temperature control knob, and high-performance milling cutter make every step from cutting to welding easier.With high efficiency pure copper motor, welding can be completed in 20 minutes, and low noise.
• 【4 Clamps】Welding level(Φ, mm) Outer dia 63mm(2.48”)75mm(2.95”)90 mm (3.54”)110 mm (4.33”)125 mm (4.92”)140 mm (5.51”)160 mm (6.30”)
• 【Application】This manually operated butt fusion welding machine applies to the welding of PE, PP, PB, PVDF, HDPE, PVC pipes, and fittings.
