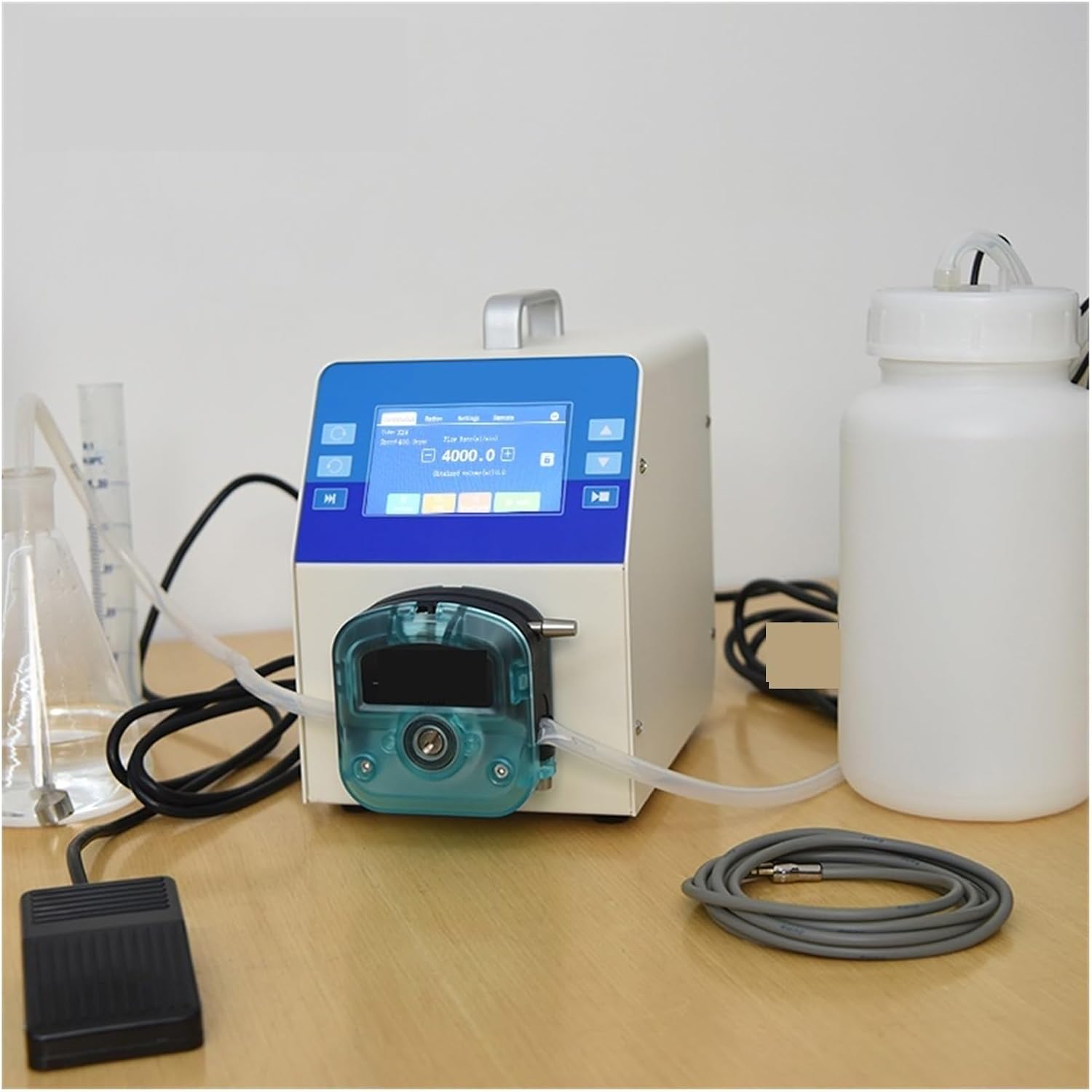

Filling Machine 7.8L/min 600RPM AIP Peristaltic Pump Intelligent App Control Dosing Pump for Lab, Food and Beverage for Liquid and Paste(S18,with Plug_AIP KPKK5000)

AIP WiFi7.8L/Min Intelligent Peristaltic Pump3 Kinds of Working ModeContinuous modeDistribution modeOnline modeBasic ParametersMaximum speed: 600RPMWorking temperature: 0~50 Relative humidity: 10%-90%Net weight: 7.7KGGross weight: 9KGSize: 280*152*235 mm (L*W*H)External analog signal control: 4-20mA, 0-5VDisplay mode: 4.3 inch industrial touch screen, speed display, duration displayControl method: Thin film button, touch screen, External analog signal control, Dosing gun, External R485/CAN communication control.Support function: Start and stop, forward and reverse, speed control, parameter memory,etcVarious Applications# Filling and dispensing# Laboratory, research institution# Food industry# Medical equipmentFlow Rate & Tube SelectionTubesMaterialsFeaturesTubing LifeS SiliconeLow adsorption, good temperature resistance, not easy to aging, low precipitation, etc., chemical resistance. Corrosion performance decreases with increasing temperature. Suitable for transmission of various low corrosion(10%) Liquid.Working temperature: -60~200200HB PharMedBPTVery good resistance to general chemicals, as well as excellent resistance to acids, alkalis and oxides. The product is transparent and resistant to ultraviolet radiation, so it helps protect sensitive liquids.Working temperature: -51~1321000HN ImportedNorpreneFDA certificate, for food and dairy product application. High temperature and corrosion resistance, aging and oxidation resistance, long-term service time.Working temperature range(-60~-135).1000HOptional Pump HeadModelPump head type and quantityAIPump600-KK25KK25×1AIPump600-KK25DKK25×2AIPump600-KK153KK15 3rotors ×1AIPump600-KK153DKK15 3rotors ×2AIPump600-KK156KK15 6rotors ×1AIPump600-KK156DKK15 6rotors ×2Packing List1 ×AIP Host with tube(BPT/Silicone/Norprene tube);1 × Power adapter (US/UK/AU/EU);1 × Foot switch.More Details1.Clockwise button2.Counterclockwise button3.Quick empty button4.Add button5.Minus button6.Start stop button7.Activity tab8.Inactive tab9.Temperature display10. statusIntelligent power off memoryWhen starting, keep the settings at the last power-off, giving you a comfortable operating experience.Fast transmission rateThe external RS485 communication protocol is adopted, the transmission rate is faster than RS232, and the communication distance is longer.1. Cooling fan2. port3. Liquid sensor port4. Temperature port5. CAN port6. RS 485 port7. Extension port8. Power portDiagram of Rear Interface

• Motor: Stepper motor
• Power: 150W Max
• Flow Range: 6000ml/min
• Power off memory function: Support
• Delivery accuracy: 0.1RPM
