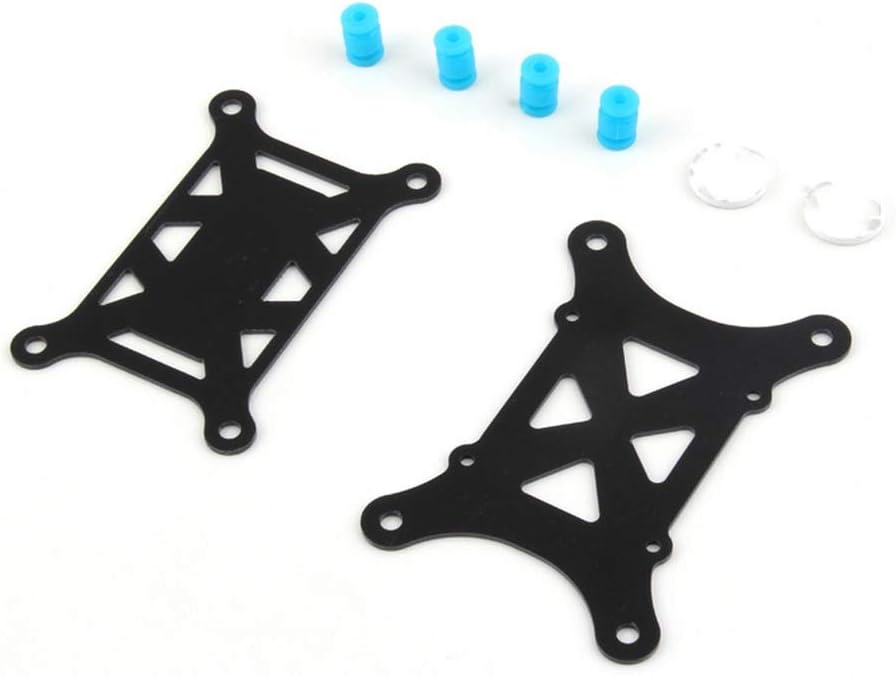

Parts & Accessories Pixhawk PX4 PIX 2.4.8 32 Bit Flight Controller Autopilot with 4G SD Safety Switch Buzzer PPM I2C Damping Plate for RC Quadcopter - (Color: Standard Collocation)

- Advanced 32 bit CortexM4 ARM high performance processor, can run RTOS NuttX real time operating system.- Integrated backup power supply and failure backup controller, the main controller can be safely switched to backup control.- Provide redundant power input and fault transfer function.- 14 * PWM / actuator output.- Bus interface (UART, I2C, SPI, CAN).- Provide automatic and manual mode.- Color LED lamp.- Multi tone buzzer interface.- Micro SD to record flight data.Specifications:The board integrates with PX4FMU + PX4IOPixhawk is with new 32 bit chip and sensor technologyProcessor:32 bit 2M flash memory STM32F427 Cortex M4, with hardware floating point processing unitMain frequency: 256K, 168MHZ RAM32 bit STM32F103 backup co processorSensor:L3GD20 3 axis digital 16 bit gyroscopeLSM303D 3 axis 14 bit accelerometer / magnetometerMPU6000 6 axis accelerometer / magnetometerMS5611 high precision barometerInterface:5 * UART, 1 * compatible high voltage, 2 * hardware flow control2 * CANSpektrum DSM / DSM2 / DSM-X satellite receiver compatible inputFutaba SBUS compatible input and outputPPM signal inputRSSI (PWM or voltage) inputI2CSPI3.3 and 6.6VADC inputExternal USB MICRO interfaceSimple Collocation included:1 x 2.4.8 Pixhawk flight controller board with 4G SD with shell1 x Safety switch1 x Buzzer1 x card readerStandard Collocation included:1 x 2.4.8 Pixhawk flight controller board with 4G SD with shell1 x Safety switch1 x Buzzer1 x card reader1x PPM encoder1x I2C splitter expand moduleUpgrade collocation includes1 x 2.4.8 Pixhawk flight controller board with 4G SD with shell1 x Safety switch1 x Buzzer1 x card reader1x PPM encoder1x I2C splitter expand module1xFlight control damping platewindow.a

• Color: Standard Collocation
• Material: Composite Material
• Tool supplies: Assembled class
• Remote control peripherals/devices: Remote Controller
• Use: Vehicles & Remote Control Toys
