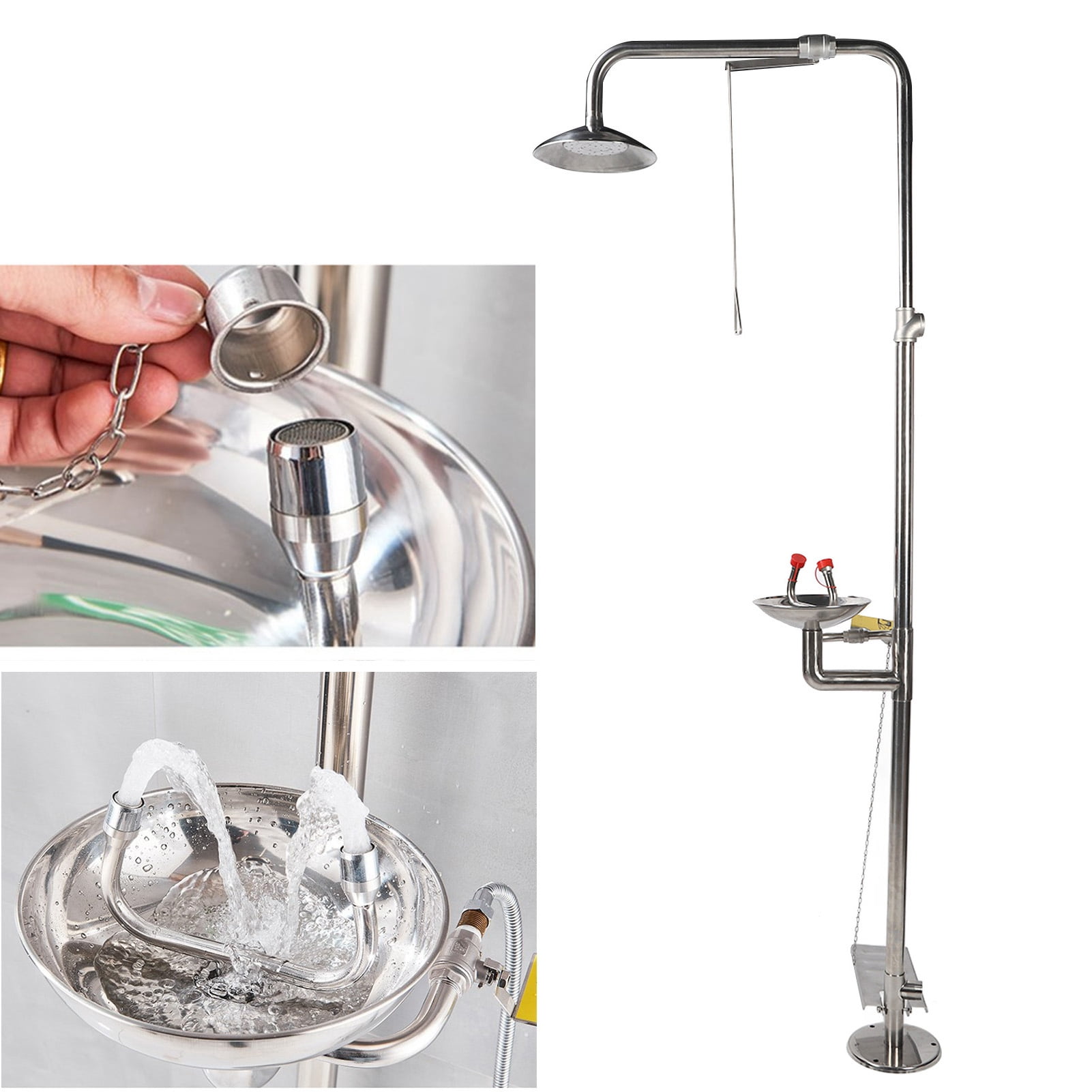

Portable Eye Wash Station, Corrosion Resistance Emergency Eyewash Kit 304 Stainless Steel Double Nozzles G1-1/4 Inch For Chemical Factory

Eyewash Station Set 304 Stainless Steel Emergency Eye Wash Shower Combination Tool for Factory Laboratory<br/>Specification:<br/>Item Type: Eye Wash Station Set<br/>Product Material: 304 Stainless Steel<br/>Design Pressure: 0.8MPA<br/>Sealing Pressure: 0.45MPA<br/>Working Pressure: 0.2-0.4MPA<br/>Shower Water Output: Greater than or equal to 75.5L/mIN<br/>Eye Wash Water Output: Greater than or equal to 11.4L/mIN<br/>Water Inlet Size: G1-1/4 Inch Female Thread<br/>Outlet Size: G1-1/4 Inch Female Thread<br/>Standard: Strictly follow the technical requirements of US ANSI Z358.1 2004 for production.<br/>Switching Method: Manual Switch can be equipped with high performance pedal, hand foot linkage, more convenient and fast operation<br/>Application: Widely in nuclear power, power station, pharmaceutical, , chemical, petrochemical, electronics, metallurgy, smelting, printing, dyeing, education and scientific research units, etc.<br/>Installation: <br/>1. Directly installed on the ground of the work site, near hazardous work areas, at a distance of no more than 15 meters. The time to arrive at the eyewash in a straight line shall not exceed 10 seconds. When the chemical substance splashes on the eyes, face, neck and body of the staff, the eyewash shall be in a timely manner for major flushing to reduce injuries and gain valuable time<br/>2. Non explosion proof electrical switches are not allowed within the 2m radius of the eyewash<br/>3. No obstacles shall be stacked within a 2 meter radius of the eyewash<br/>4. Eyewash cannot be installed across floors<br/>5. Must be connected to drinking tap water<br/>6. According to the installation hole position of the eyewash base, drill 3 holes with a diameter of 10mm on the ground where the eyewash needs to be installed, and fix them with stainless steel wall plug.<br/>7. According to the assembly parts drawing of the eyewash, the whole eyewash parts shall be installed one by one. The water pipe connection must use a sealed thread seal tape.<br/>8. During the installation process, it is best to have a 90 degree angle between the sprinkler head, eye wash elbow, and water outlet. <br/><br/>Package List:<br/>1 x Circular Base5 x Connecting Rods1 x Eye Wash Basin1 x Shower Basin1 x Pull Ring1 x Spray Nozzle1 x Chain Pack3 x Wall Plugs1 x Feed Strip1 x Foot Pedal1 x Connection Valve1 x Indicator Board1 x User Manual <br/><br/>Note:<br/>1. When using, gently push and push the valve with your hand, and clean water will automatically spray out; After use, close the eye wash hand push valve and spray hand pull valve, and then reset the dust cover.2. It can be equipped with luminous signs and lighting tools, making it more convenient to use at night.

• EYE WASHING: Double nozzle and shower design, filtering out impurities in the water, providing comfortable water flow and steam to meet the 15 minute convenient eye wash requirement

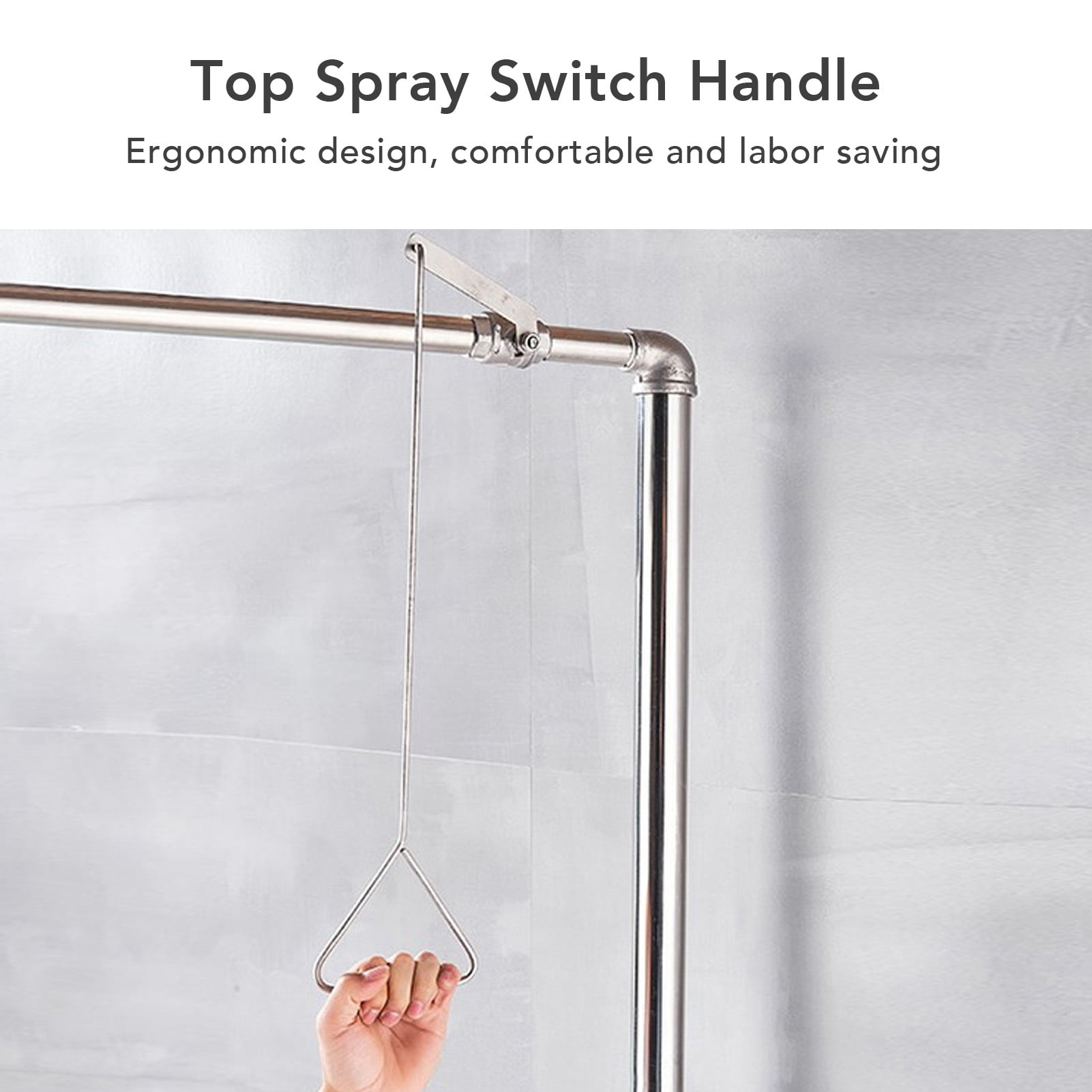

• MANUAL CONTROL: The eyewash station controls water flow and switches through a hand pull shower rod and a hand push, including a self draining system to prevent water and ice accumulation.
