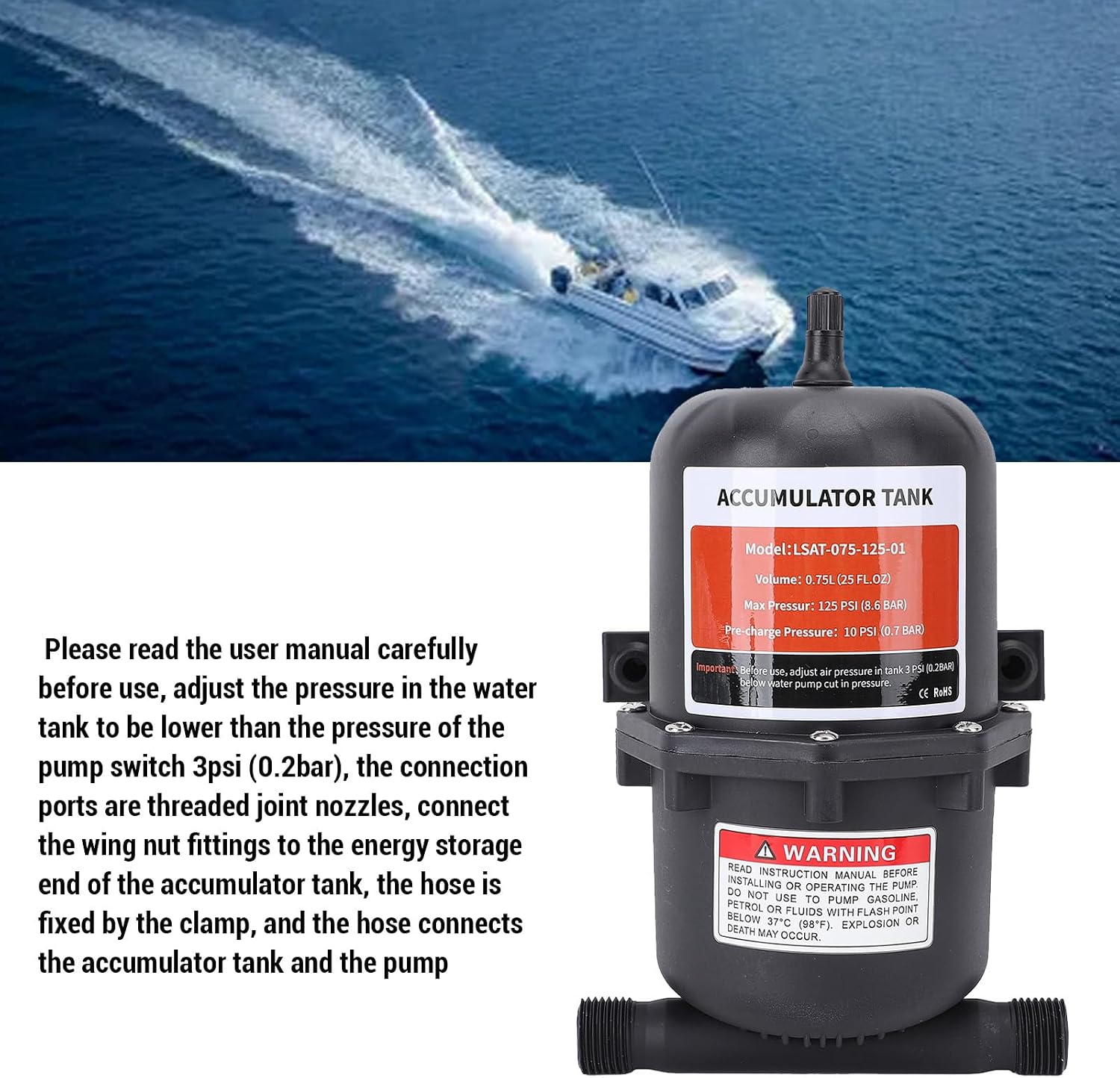

RV Pre Pressurized Accumulator Tank Maximum 125PSI 1/2 MNPT Port Fitting with 2 Clamps 1 PTFE Tape for RV

Spec: Item Type: Mini Pressure Tank Size: Approx. 20 x 12.7 x 11.4cm / 7.9 x 5 x 4.5in Volume: 0.75L (25.3FL.OZ) Charging Pressure: 10PSI 0.7BAR Maximum Operating Pressure: 125PSI 8.6BAR Fill Valve: Standard car type tire valve Inlet Outlet Diameter: 1/2in MNPT Features: Play the role of constant pressure to prevent the system pressure from rising and falling, so that the waterflow is more gentle Function: 1. For RV Use: Effectively absorb excess heat entering the water system piping due to the heater, no poof sound when the faucet is turned on 2. For RV Water Leakage: After long term use of the RV, pipe connections may loosen, resulting in dripping water, this causes the pump to start frequently, the pressure tank can effectively reduce the frequency of starts 3. During Showering: The pressure tank can effectively improve the frequent start stop of the caused by uneven piping and nozzles Working Principle: 1. The pressure tank has pre charging pressure before leaving the factory 2. When the is turned on, water enters the pressure tank. When the pressure tank is full, the stops working 3. When water is needed, the water in the pressure tank enters the pipeline first due to the pressure, the remains closed until the pressure in the pressure tank is lower than the start pressure of the , the starts working, repeat this cycle Package List: 1 x Pump Body 2 x Wing Nut Joint 2 x Hose Clamp 1 x PTFE Tape 1 x User Manual

• Easy Installation: Installation is a breeze with our detailed instructions. Adjust the air pressure in the tank to be 3psi (0.2bar) lower than the pump switch pressure, and use the built-in four clamps and two wing nut fittings for a secure connection between the accumulator tank and energy source. The hose is easily fixed in place with clamps, ensuring a simple setup.
• Sturdy for Usep: Store the water pressure of the water pipe during the period, buffer the impact damage caused by the high water pressure to the pump, reduce the sound, reduce the frequent start of the pump, and provide a more stable water supply.
• Universal RV Pre-Pressure Accumulator Tank: Pressure value 10psi-125psi, suitable for most pumps on the market, constant pressure, reduce pump circulation, and solve the pulsation problem of RV or fresh water system on board.
• Applicable Scenario: A small accumulator tank can reduce the pressure of water entering the RV water tank, reduce the impact and damage to the RV water tank. Energy storage tanks are suitable for RVs, boats, travel trailers, caravans, yachts, providing great convenience for your outdoor travel.
• Wide Applications: Pre-inflated pressure 10psi (0.7bar) in the tank before leaving the factory, with RV, caravan, boat pressurized water system, food and beverage filling and liquid delivery and any other pressurized system compatible to help you reduce frequent pump starts.
